SIGNATURE SPECIFICATIONS:
- Satin stainless finish ensures lasting wear with elegant appeal
- Manufactured to support loads in excess of all applicable federal load specifications when properly installed.

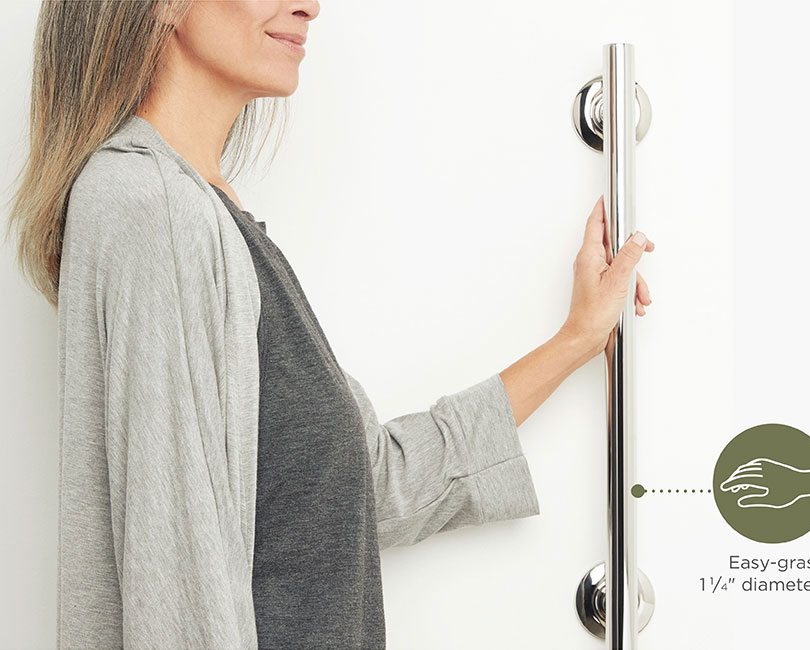

SHOWN: GSS-180-QCR
Our Signature Series of standard grab bars are fabricated using American quality craftsmanship from premium #304 stainless steel, to satisfy all dimensional and load requirements specified for ADA applications. Grab bars are available in a wide range of shapes and sizes, including standard and custom configurations with concealed or exposed flanges, and multiple finish options.

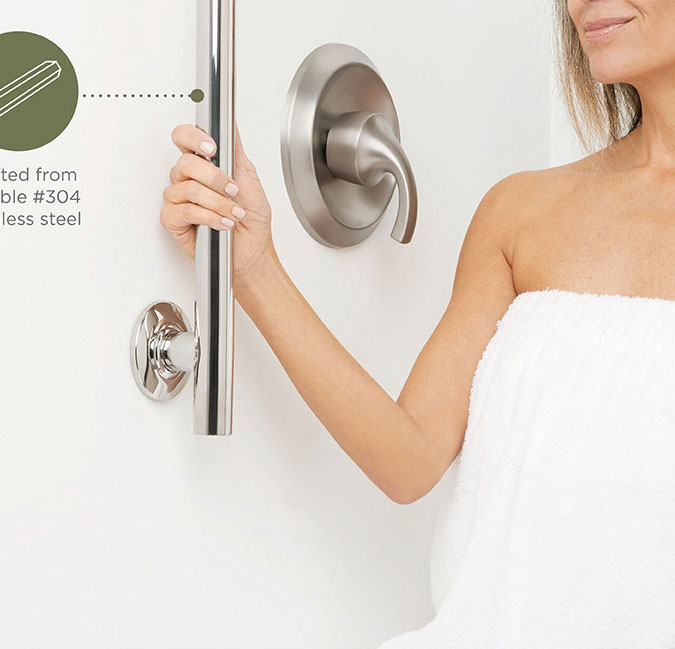

- Made from #304 stainless steel
- Wall clearance: 1-1/2”
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Lengths: 12”, 16”, 18”, 24”, 30”, 32”, 36”, 42”, 48”
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters

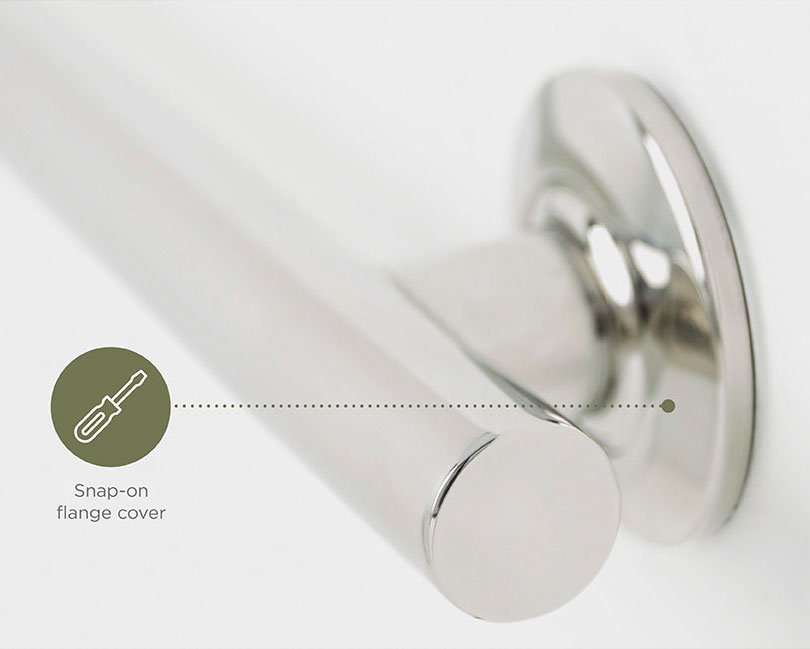

Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
 |
GSS-180-QCR | 1-1/4” diameter x 18 gauge, .048 x 18” length | Concealed, 3” diameter x 14 gauge, .075 | Satin Finish, 3” diameter x 22 gauge, .030 |
|
GSS-180-HCR | 1-1/2” diameter x 18 gauge, .048 x 18” length | Concealed, 3” diameter x 14 gauge, .075 | Satin Finish, 3” diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSS-180-QER | 1-1/4” diameter x 18 gauge, .048 x 18” length | Exposed, 3” diameter x 14 gauge, .075 |
|
GSS-180-HER | 1-1/2” diameter x 18 gauge, .048 x 18” length | Exposed, 3” diameter x 14 gauge, .075 |
|
GSS-180-QEW | 1-1/4” diameter x 18 gauge, .048 x 18” length | Exposed, 3” diameter x 10 gauge, .135 |
|
GSS-180-HEW | 1-1/2” diameter x 18 gauge, .048 x 18” length | Exposed, 3” diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSM-360-QCR
This grab bar features a center post for added stability. It is made from premium #304 stainless steel with concealed, 5-hole or exposed, 3-hole mounting flanges, to provide a sleek appearance.
- Made from #304 stainless steel
- Wall clearance: 1-1/2”
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Lengths: 36”, 42”, 48”, 52", 54", 60"
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSM-360-QCR | 1-1/4” diameter x 18 gauge, .048 x 36” length | Concealed, 3” diameter x 14 gauge, .075 | Satin Finish, 3” diameter x 22 gauge, .030 |
| GSM-360-HCR | 1-1/2” diameter x 18 gauge, .048 x 36” length | Concealed, 3” diameter x 14 gauge, .075 | Satin Finish, 3” diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
| GSM-360-QER | 1-1/4” diameter x 18 gauge, .048 x 36” length | Exposed, 3” diameter x 14 gauge, .075 | |
| GSM-360-HER | 1-1/2” diameter x 18 gauge, .048 x 36” length | Exposed, 3” diameter x 14 gauge, .075 | |
| GSM-360-QEW | 1-1/4” diameter x 18 gauge, .048 x 36” length | Exposed, 3” diameter x 10 gauge, .135 | |
| GSM-360-HEW | 1-1/2” diameter x 18 gauge, .048 x 36” length | Exposed, 3” diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSM1-480-QCR
A grab bar with a center post for added stability, it features one curved end and one straight end, making it ideal for mounting in a corner. Made from #304 stainless steel, it features concealed, 5-hole or exposed, 3-hole mounting flanges, and is available in a range of sizes and finishes.
- Made from #304 stainless steel
- Wall clearance: 1-1/2"
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Lengths: 36", 42", 48", 52", 54", 60"
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSM1-180-QCR | 1-1/4" diameter x 18 gauge, .048 x 18" length | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
|
GSM1-180-HCR | 1-1/2" diameter x 18 gauge, .048 x 18" length | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSM1-180-QER | 1-1/4" diameter x 18 gauge, .048 x 18" length | Exposed, 3" diameter x 14 gauge, .075 |
|
GSM1-180-HER | 1-1/2" diameter x 18 gauge, .048 x 18" length | Exposed, 3" diameter x 14 gauge, .075 |
|
GSM1-180-QEW | 1-1/4" diameter x 18 gauge, .048 x 18" length | Exposed, 3" diameter x 10 gauge, .135 |
|
GSM1-180-HEW | 1-1/2" diameter x 18 gauge, .048 x 18" length | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GST-160320-QCR
A versatile tub and shower grab bar with a curved design that enables it to be mounted around corners, to provide enhanced mobility and support while bathing. Available with concealed, 5-hole mounting flanges or exposed, 3-hole mounting flanges.
- Made from #304 stainless steel
- Wall clearance: 1-1/2"
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Sizes:
- 16”W x 16”D / 16”W x 32”D
- 24"W x 24"D / 20"W x 24"D
- 24"W x 36"D / 24"W x 48"D
- 30"W x 30"D / 36"W x 36"D
- 36"W x 48"D / 36"W x 54"D
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
| GST-240240-QCR | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 | |
| GST-240240-HCR | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
| GST-240240-QER | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 14 gauge, .075 | |
| GST-240240-HER | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 14 gauge, .075 | |
| GST-240240-QEW | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 | |
| GST-240240-HEW | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSTWL-360240-QCR
A durable, #304 stainless steel tub and shower bar that combines horizontal and vertical support, to provide extra security when entering, exiting, sitting or standing in a tub or shower. It is available in a range of sizes, in both right-handed and left-handed configurations.
- Made from #304 stainless steel
- Wall clearance: 1-1/2"
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Sizes:
- 36"W x 24"D x 24"H
- 48"W x 24"D x 24"H
- 54"W x 24"D x 24"H
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSTWL-360240-QCR: Left-handed | 1-1/4" diam x 18 ga, .048 x 36" x 24" x 24" lengths | Concealed, 3" diam x 14 ga, .075 | Satin Finish, 3" diam x 22 ga, .030 |
|
GSTWR-360240-HCR: Right-handed | 1-1/2" diam x 18 ga, .048 x 36" x 24" x 24" lengths | Concealed, 3" diam x 14 ga, .075 | Satin Finish, 3" diam x 22 ga, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSTWL-360240-QER: Left-handed | 1-1/4" diameter x 18 gauge, .048 x 36" x 24" x 24" lengths | Exposed, 3" diameter x 14 gauge, .075 |
|
GSTWR-360240-QER: Right-handed | 1-1/4" diameter x 18 gauge, .048 x 36" x 24" x 24" lengths | Exposed, 3" diameter x 14 gauge, .075 |
|
GSTWL-360240-HEW: Left-handed | 1-1/2" diameter x 18 gauge, .048 x 36" x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSTWR-360240-HEW: Right-handed | 1-1/2" diameter x 18 gauge, .048 x 36" x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSVL-240240-QCR
Made from #304 stainless steel, this grab bar provides two kinds of support, enabling users to enjoy added security when entering, exiting, sitting or standing in a tub or shower. It is available in both right-handed and left-handed configurations.
- Made from #304 stainless steel
- Wall clearance: 1-1/2"
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Sizes:
- 16"W x 16"H
- 16"W x 32"H
- 20"W x 20"H
- 24"W x 24"H
- 30"W x 30"H
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
| GSVL-240240-QCR: Left-handed | 1-1/4" diam x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diam x 14 gauge, .075 | Satin Finish, 3" diam x 22 gauge, .030 | |
| GSVL-240240-HCR: Left-handed | 1-1/2" diam x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diam x 14 gauge, .075 | Satin Finish, 3" diam x 22 gauge, .030 | |
| GSVR-240240-QCR: Right-handed | 1-1/4" diam x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diam x 14 gauge, .075 | Satin Finish, 3" diam x 22 gauge, .030 | |
| GSVR-240240-HCR: Right-handed | 1-1/2" diam x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diam x 14 gauge, .075 | Satin Finish, 3" diam x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
| GSVL-240240-QER: Left-handed | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 14 gauge, .075 | |
| GSVL-240240-HER: Left-handed | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 14 gauge, .075 | |
| GSVR-240240-QEW: Right-handed | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 | |
| GSVR-240240-HEW: Right-handed | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSU-300360-QCR
With its versatile, wraparound design, this grab bar provides support on three sides, making it ideal for entering, exiting or moving about in the shower. It is manufactured from durable #304 stainless steel, and can support more than 300 lbs. when installed properly.
- Made from #304 stainless steel
- Wall clearance: 1-1/2"
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Sizes:
- 30"W x 36"D x 30"W
- 30"W x 48"D x 30"W
- 30"W x 54"D x 30"W
- 30"W x 60"D x 30"W
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSU-300360-QCR | 1-1/4" diameter x 18 gauge, .048 x 30" x 36" x 30 lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
| GSU-300360-HCR | 1-1/2" diameter x 18 gauge, .048 x 30" x 36" x 30 lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
| GSU-300360-QER | 1-1/4" diameter x 18 gauge, .048 x 30" x 36" x 30 lengths | Exposed, 3" diameter x 14 gauge, .075 | |
| GSU-300360-HER | 1-1/2" diameter x 18 gauge, .048 x 30" x 36" x 30 lengths | Exposed, 3" diameter x 14 gauge, .075 | |
| GSU-300360-QEW | 1-1/4" diameter x 18 gauge, .048 x 30" x 36" x 30 lengths | Exposed, 3" diameter x 10 gauge, .135 | |
| GSU-300360-HEW | 1-1/2" diameter x 18 gauge, .048 x 30" x 36" x 30 lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSD-330180-QCR
The floor mount and additional wall support on this grab bar provides substantial security, to assist users when accessing a drinking fountain from a sitting or standing position. It is available in a range of finishes.
- Made from #304 stainless steel
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Size: 33"H x 18"D
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSD-330180-QCR | 1-1/4" diameter x 18 gauge, .048 x 33" x 18" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
| GSD-330180-HCR | 1-1/2" diameter x 18 gauge, .048 x 33" x 18" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
| GSD-330180-QEW | 1-1/4" diameter x 18 gauge, .048 x 33" x 18" lengths | Exposed, 3" diameter x 10 gauge, .135 | |
| GSD-330180-HEW | 1-1/2" diameter x 18 gauge, .048 x 33" x 18" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSW-330300-QCR
This durable wall-to-floor bar is ideal for mounting beside a toilet, to provide users with support while getting up and down. It is available with or without a below ground extension.
- Made from #304 stainless steel
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Size: 33"H x 30"D
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSW-330300-QCR | 1-1/4" diameter x 18 gauge, .048 x 33" x 30" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
|
GSW-330300-HCR | 1-1/2" diameter x 18 gauge, .048 x 33" x 30" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSW-330300-QEW | 1-1/4" diameter x 18 gauge, .048 x 33" x 30" lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSW-330300-HEW | 1-1/2" diameter x 18 gauge, .048 x 33" x 30" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSWR-330300-QCR
A wall-to-floor bar with a second side leg provides users with additional safety and security while getting up and down. It is designed for mounting to the wall beside a toilet, and is available in left-handed or right-handed configurations.
- Made from #304 stainless steel
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Polished Brass, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Size: 33"H x 30"D
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSWL-330300-QCR: Left-handed | 1-1/4" diam x 18 ga, .048 x 33" x 30 lengths | Concealed, 3" diam x 14 ga, .075 | Satin Finish, 3" diam x 22 ga, .030 |
|
GSWL-330300-HCR: Left-handed | 1-1/2" diam x 18 ga, .048 x 33" x 30 lengths | Concealed, 3" diam x 14 ga, .075 | Satin Finish, 3" diam x 22 ga, .030 |
|
GSWR-330300-QCR: Right-handed | 1-1/4" diam x 18 ga, .048 x 33" x 30 lengths | Concealed, 3" diam x 14 ga, .075 | Satin Finish, 3" diam x 22 ga, .030 |
|
GSWR-330300-HCR: Right-handed | 1-1/2" diam x 18 ga, .048 x 33" x 30 lengths | Concealed, 3" diam x 14 ga, .075 | Satin Finish, 3" diam x 22 ga, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSWL-330300-QEW: Left-handed | 1-1/4" diameter x 18 gauge, .048 x 33" x 30 lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSWR-330300-QEW: Right-handed | 1-1/4" diameter x 18 gauge, .048 x 33" x 30 lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSWL-330300-HEW: Left-handed | 1-1/2" diameter x 18 gauge, .048 x 33" x 30 lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSWR-330300-HEW: Right-handed | 1-1/2" diameter x 18 gauge, .048 x 33" x 30 lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSB-120120-QCR
Offers horizontal and vertical support, to assist users when moving between sitting and standing positions. It is designed for optimal use when mounted to the wall beside a toilet, and can support more than 300 lbs. when properly installed.
- Made from #304 stainless steel
- Wall clearance: 1-1/2"
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Size: 12" x 12" x 120 degree
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSB-120120-QCR | 1-1/4" diameter x 18 gauge, .048 x 12" x 12" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
|
GSB-120120-HCR | 1-1/2" diameter x 18 gauge, .048 x 12" x 12" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSB-120120-QER | 1-1/4" diameter x 18 gauge, .048 x 12" x 12" lengths | Exposed, 3" diameter x 14 gauge, .075 |
|
GSB-120120-HER | 1-1/2" diameter x 18 gauge, .048 x 12" x 12" lengths | Exposed, 3" diameter x 14 gauge, .075 |
|
GSB-120120-QEW | 1-1/4" diameter x 18 gauge, .048 x 12" x 12" lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSB-120120-HEW | 1-1/2" diameter x 18 gauge, .048 x 12" x 12" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSWW-240240-QCR
This fixture enables users to securely raise and lower themselves when using the toilet. It is designed for mounting to a wall behind a toilet, and complies with ADA guidelines when properly installed.
- Made from #304 stainless steel
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Polished Brass, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Size: 24"W x 24"D
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSWW-240240-QCR | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
| GSWW-240240-HCR | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
| GSWW-240240-QEW | 1-1/4" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 | |
| GSWW-240240-HEW | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
SHOWN: GSFS-330300-QCR
When mounted to the floor around a toilet, this fixture provides users with secure bars to raise and lower themselves. Manufactured using premium #304 stainless steel, this bar meets and exceeds the minimum 250 lb. load requirement when properly installed.
- Made from #304 stainless steel
- Available finishes: Satin Stainless, Polished Stainless, Peened with Satin Ends, Peened with Polished Ends, Powder Coat (9 standard colors on #304 stainless steel: White, Biscuit, Almond, White Wrinkle, Almond Wrinkle, Satin Nickel, Bronze, Black, Polished Brass)
- Standard Size: 33"H x 30"D
- Meets and exceeds the minimum 250 lb. load requirement when properly installed
- Available in two standard diameters
Concealed 5-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | FLANGE COVERS | |
|---|---|---|---|---|
|
GSFS-330300-QCR | 1-1/4" diameter x 18 gauge, .048 x 33" x 30" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
|
GSFS-330300-HCR | 1-1/2" diameter x 18 gauge, .048 x 33" x 30" lengths | Concealed, 3" diameter x 14 gauge, .075 | Satin Finish, 3" diameter x 22 gauge, .030 |
Exposed 3-hole mounting flanges:
| MODEL # | BAR | MOUNTING FLANGES | |
|---|---|---|---|
|
GSFS-330300-QEW | 1-1/4" diameter x 18 gauge, .048 x 33" x 30" lengths | Exposed, 3" diameter x 10 gauge, .135 |
|
GSFS-330300-HEW | 1-1/2" diameter x 18 gauge, .048 x 24" x 24" lengths | Exposed, 3" diameter x 10 gauge, .135 |
Custom sizes and finishes are available to meet your design specifications.
